MOTOR EXTENSION KIT
■Making it possible to use EDFC Series on vehicle models that are not compatible as-is!

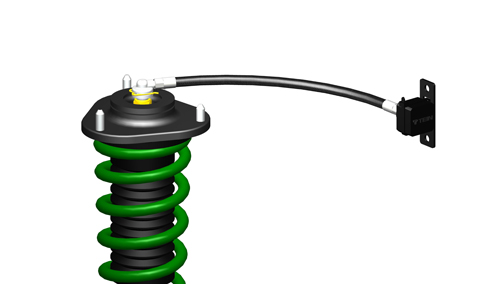

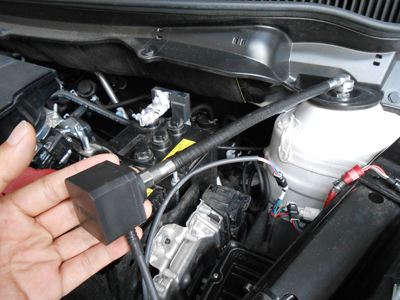

Motor Extension Kit uses the exclusively designed flexible shaft to allow EDFC Series motor (hereinafter, "Motor") to be installed at different position away from the top part of shock absorber. With this kit, EDFC Series can be used on more vehicle models that have no sufficient space around piston rod top.
■Greater Flexibility in Positioning of Motor

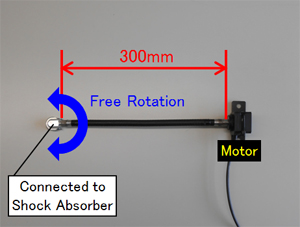

Extension is 300mm in length and rotates freely, making it possible to put Motor at more flexible location than ever.

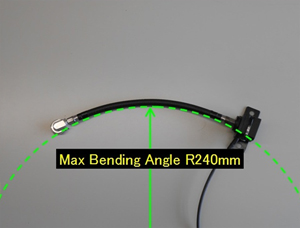

Do NOT bend the extension shaft beyond the bending angle of R240mm. If bent further, Motor might operate unstably and/or malfunction.
■Easy Installation

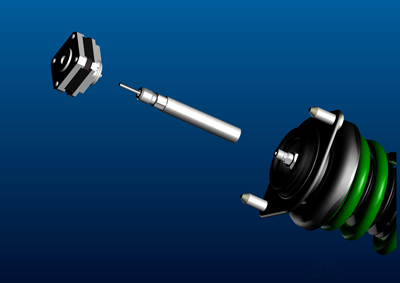

Installation process can be done with the shock absorber fitted onto the vehicle. Remove damping force adjustment knob and hex bolt then attach the extension kit. That is all there is to it. No special skill nor tool is required.
■Exclusive Motor Bracket

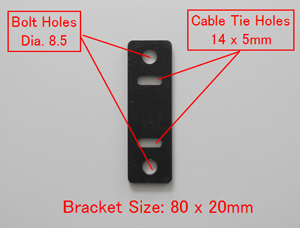

Specially-designed motor bracket included in the kit makes it easy to anchor the Motor to the vehicle.

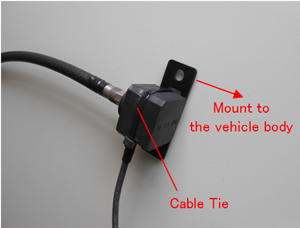

Cable ties for anchoring motors to the bracket are also included in the kit.

*Please use general-purpose bolts etc (NOT included) to mount the motor bracket to the vehicle body.
*Attaching the Motor to the vehicle body panel etc. might cause the motor operating sound to amplify and/or reverberate inside the vehicle.
Contents of Kit
MOTOR EXTENSION KIT
Extension Assembly x 2, Motor Bracket x 2, Cable Tie x 2 & Instruction Manual
MSRP excl.Tax JPY 7,600/kit
Description Part No.
Motor Extension Kit (M10) EDK08-P8514-10
Motor Extension Kit (M12) EDK08-P8514-12
Motor Extension Kit (M14) EDK08-P8514-14
*All Motor Extension Kits use M12 motors.
[ CAUTION!! ]
(1)Check if piston rod top is threaded all the way to the end. If the end has non-threaded part, Motor Extension Kit can not be attached. Please refer to the diagrams below.
(2)Measure the protruding part of piston rod, the length between the edge of nut to the tip of rod, as shown below. This length needs to be more than 7mm.
(3)NOT compatible with MONO FLEX, COMFORT SPORT, COMFORT FLEX, SUPER RACING, MONO SPORT.
(4)NOT compatible with Shock Absorbers with S.L.C. (Side Layout Click).
Piston Rod Top Extension for EDFC Series

This made-to-order gadget extends the piston rod top to shift the position of EDFC motor installation to allow sufficient space. This also works with Motor Extension Kit. It will be produced to the desired length (not less than 21mm extension or 26mm overall) upon request. When ordering, the part number of the damper kit and the desired length must be provided. Please ask for details.
Contents of Kit
MOTOR EXTENSION KIT
Piston Rod Top Extension x 2, ADJ Rod x 2
MSRP JPY 8,400/set of 2
Only Available Upon Request
Estimated Production Lead Time: Approx. 2 week
[ CAUTION!! ]
(1)Check if piston rod top is threaded all the way to the end. If the end has non-threaded part, Piston Rod Top Extension can not be attached. Please refer to the diagrams below.
(2)Measure the protruding part of piston rod, the length between the edge of nut to the tip of rod, as shown below. This length needs to be more than 11mm.
(3)The length of Piston Rod Top Extension must be 21mm or longer.
(4)NOT compatible with Shock Absorbers with S.L.C. (Side Layout Click).
