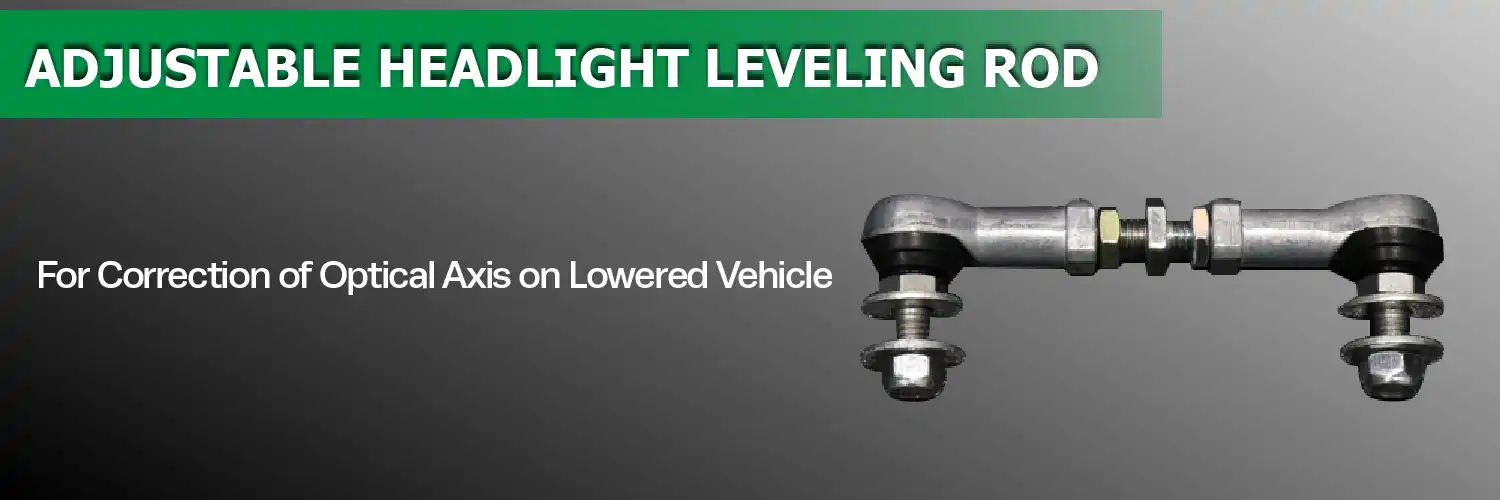

Role of TEIN Adjustable Headlight Leveling Rod

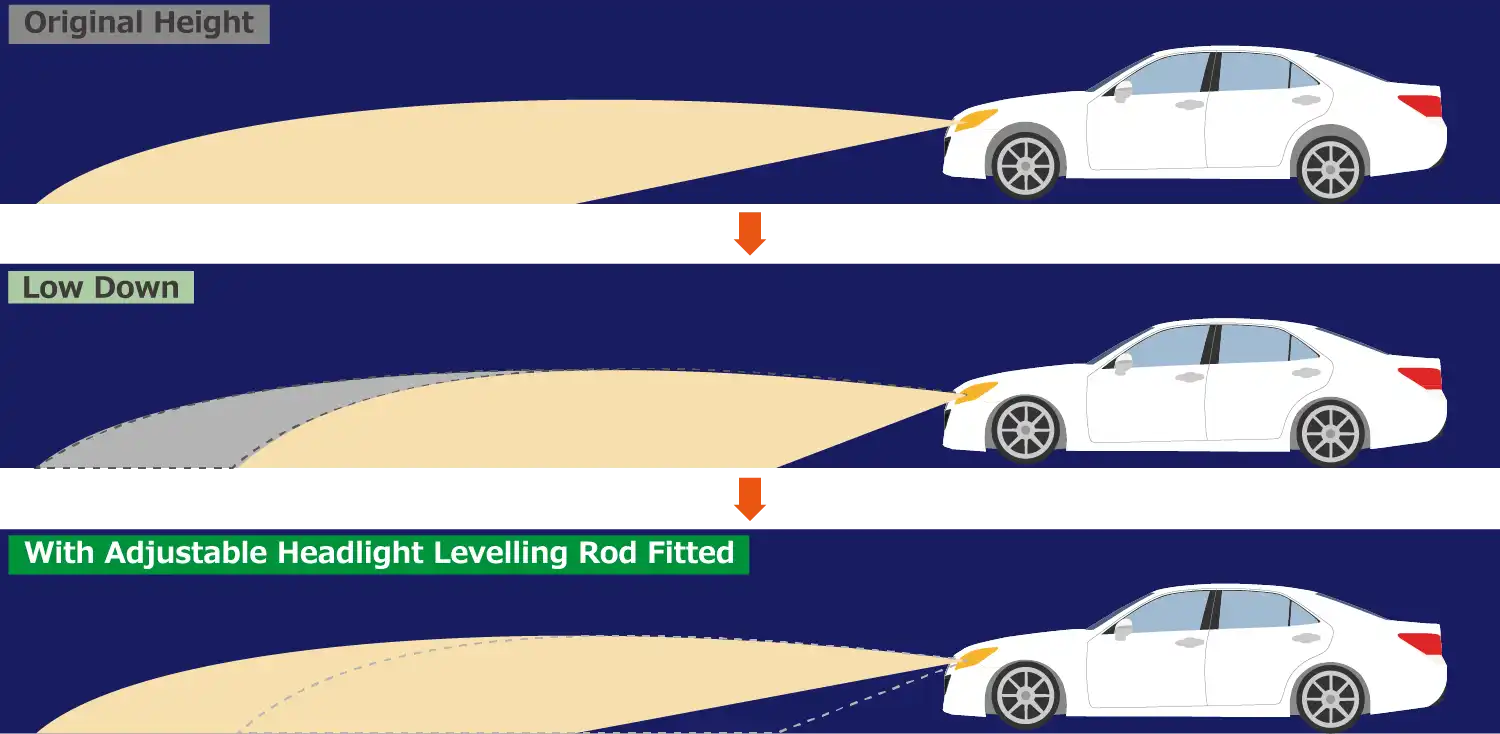

When the ride height is lowered, many of models with self-leveling headlights falsely recognize that only the rear side is lowered (the car is tilted backwards), since the sensor is only attached to the rear end. This causes the headlight axis to be automatically adjusted downward, only to light the near side as a result. With this Adjustable Headlight Leveling Rod installed, the angle of headlight level sensor is corrected close to that of OE, and hence the headlight is kept at appropriate angle.

Upon installation of this product, headlight optical axis must be checked and adjusted as necessary, using appropriate testing device.

Specifications

  • Simple Replacement - NO Modification Needed
  • Turnbuckle Adjuster
  • Comes with Bracket, if applicable

Lineup

Part No. JAN Code MSRP excl. Tax
ALR01-R7047 4580101246775 JPY 5,000
ALR01-R7048 4580101246782 JPY 5,000
ALR01-R7049 4580101246799 JPY 5,000
ALR01-R7050 4580101246805 JPY 5,000
ALR01-R7052 4580101246829 JPY 5,500
ALR01-R7053 4580101246836 JPY 5,500
ALR01-R7054 4580101246843 JPY 5,500
ALR01-R7055 4580101246850 JPY 5,500
