Micro Speed Valve(M.S.V.) |
![](../img/spacer.gif) |

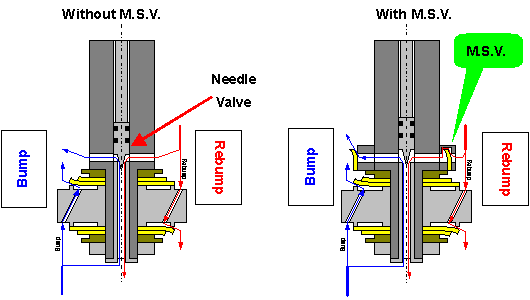

- M.S.V. Schematic Diagram - |
![](img/m_s_v_01e.gif) |
Damping force changes as oil flow bypassing needle valve changes. |
![](../img/spacer.gif) |
M.S.V. system generates damping force at the separate valve placed at the bypass flowing through the needle valve. |
|
![](../img/spacer.gif) |
![](img/spacer.gif) |
![](../img/spacer.gif) |

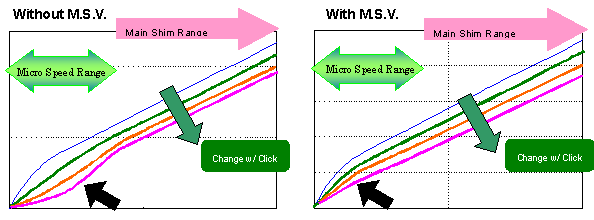

-Damping Force Chart > (Rebound Side)- |
![](img/m_s_v_02e.gif) |
Adjusting the knob to softer setting causes unnecessary decline in damping force generation at low speed and worsening of steering response as a result. |
|
Use of M.S.V. prevents decline in damping force generation even with the knob set to softer position, thus improving steering response and traction performance. |
|
|
|
