Specifications

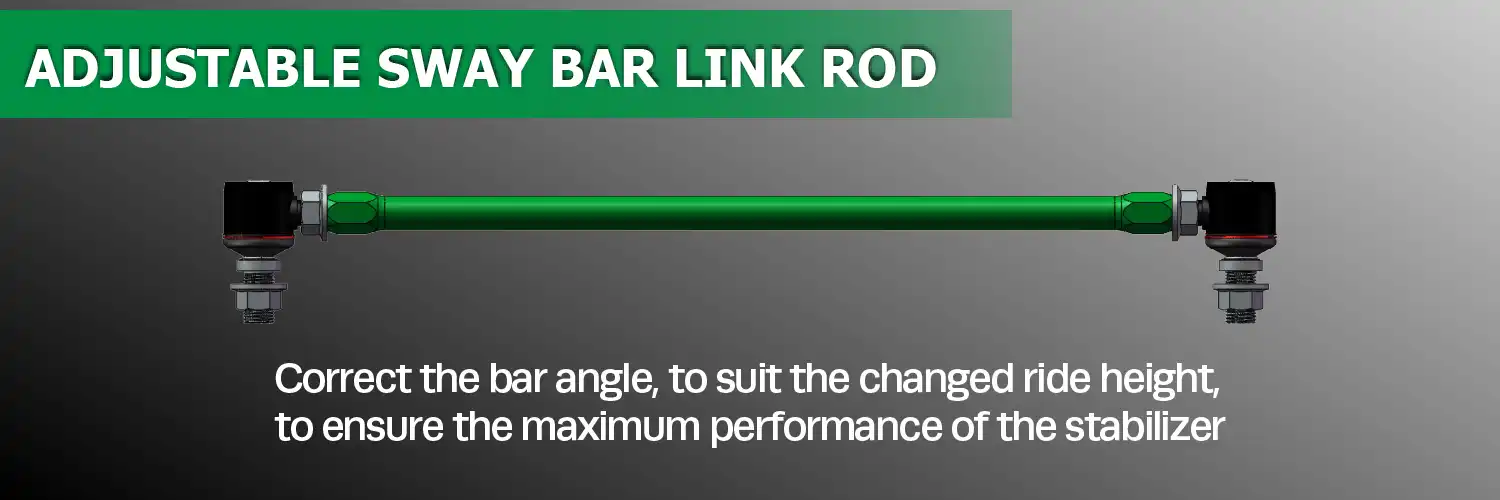

Adjustable link rods allow you to adjust the stabilizer angle which is altered when the carʼs ride height is lowered or lifted. Fine & precise adjustment in millimeters for optimum angle. Easy installation - simple replacement of OE parts.
Our powder coating technique produces an extremely strong and durable film. No harmful organic solvents are used, for minimal pollution. Superior durability and corrosion resistance are achieved by TEIN's patented 2-Layer, 1-Bake powder coating method, which uses 2 layers of anti-rust paint on a blasted surface.
Turnbuckle adjuster enables the length tuning without removing the Adjustable Sway Bar Link Rod from the vehicle. The length can be changed by a millimeter increments, simply by loosening the nut and turning the rod, with the Adjustable Sway Bar Link Rod itself still on the vehicle.
Lineup

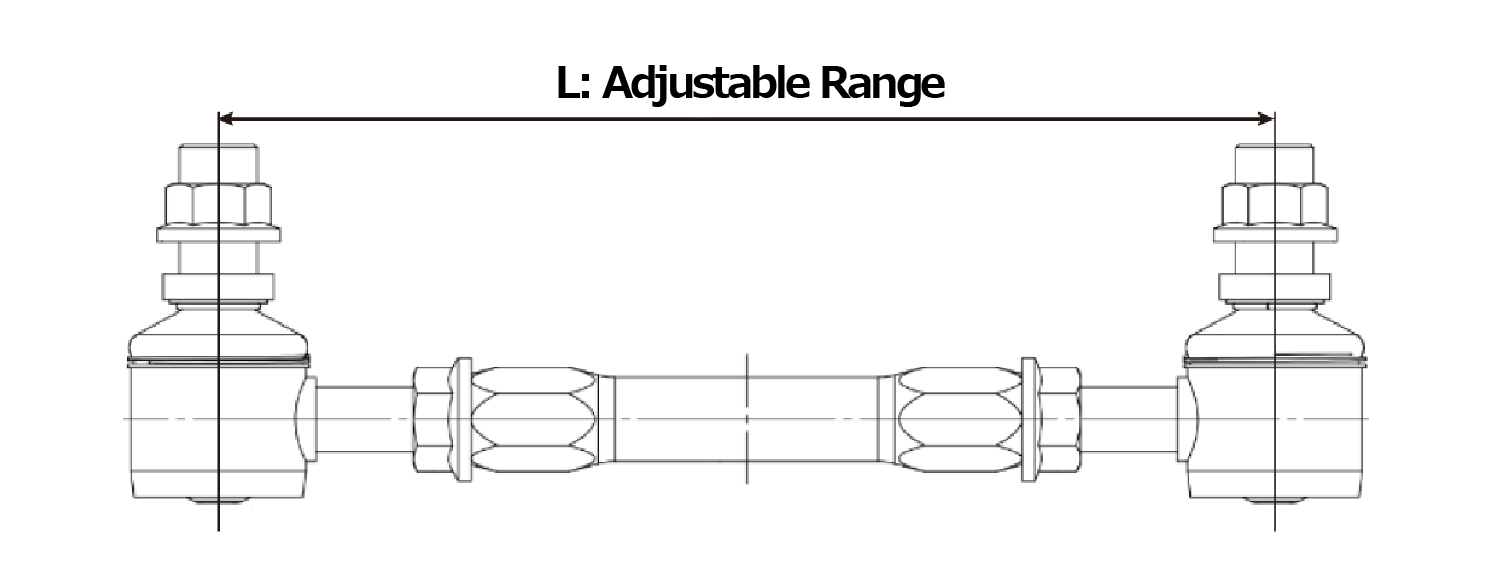

| Part No. | L: Adjustable Range (mm) |
JAN Code | MSRP excl. Tax (Set of 2) |
ON SALE | |
|---|---|---|---|---|---|
| SPS23-R5903 | M10-1 | 100-120 | 4580101246034 | JPY 12,800 | NOW ON SALE |
| SPS23-R5904 | M10-2 | 120-140 | 4580101246041 | NOW ON SALE | |
| SPS23-R5905 | M10-3 | 140-200 | 4580101246058 | NOW ON SALE | |
| SPS23-R5906 | M10-4 | 200-260 | 4580101246065 | NOW ON SALE | |
| SPS23-R5907 | M10-5 | 245-305 | 4580101246072 | NOW ON SALE | |
| SPS23-R5908 | M10-6 | 290-350 | 4580101246089 | NOW ON SALE | |
| SPS23-R5909 | M10-7 | 335-395 | 4580101246096 | NOW ON SALE | |
| SPS23-R5910 | M10-8 | 380-440 | 4580101246102 | NOW ON SALE | |
| Part No. | L: Adjustable Range (mm) |
JAN Code | MSRP excl. Tax (Set of 2) |
ON SALE | |
|---|---|---|---|---|---|
| SPS23-R5911 | M12-1 | 100-120 | 4580101246119 | JPY 12,800 | NOW ON SALE |
| SPS23-R5912 | M12-2 | 120-140 | 4580101246126 | NOW ON SALE | |
| SPS23-R5913 | M12-3 | 140-200 | 4580101246133 | NOW ON SALE | |
| SPS23-R5914 | M12-4 | 200-260 | 4580101246140 | NOW ON SALE | |
| SPS23-R5915 | M12-5 | 245-305 | 4580101246157 | NOW ON SALE | |
| SPS23-R5916 | M12-6 | 290-350 | 4580101246164 | NOW ON SALE | |
| SPS23-R5917 | M12-7 | 335-395 | 4580101246171 | NOW ON SALE | |
| SPS23-R5918 | M12-8 | 380-440 | 4580101246188 | NOW ON SALE | |
- This product is designed to fit various vehicle models.
Changes in sway bar angle vary by parts/components installed on the vehicle as well as the ride height setting. Please choose the most suitable rod length for such use conditions. - Adjust the rod length (L) according to the vehicle height.
